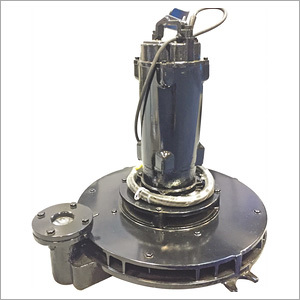

Submersible Aerator Pump

Submersible Aerator Pump
Submersible Aerator Pump
Send Inquiry
Product Code : AR
Product Description

We are engaged in offering of Submersible Aerator Pump. Non-clogging, long service life, ready to set up, easy to maintain design and lightweight and compact are qualities of offered aerator pump. Our offered pump is widely applicable in BOD reduction in waste water, aeration and agitation of waste water. This is available in range from 2HP - 75HP. This aerator pump is effective and efficient aeration along with agitation. 360 degree aeration with large convection area, High OTR due to micro bubble size and infinite number of bubbles and self-aspirating are features of offered Submersible Aerator Pump.

Features:

  • 360 degree aeration with large convection area
  • High OTR due to micro bubble size and infinite number of bubbles
  • Effective and efficient aeration along with agitation
  • Easy reduction of BOD level from waster water
  • Minimum noise level (less than 40 dB)
  • Self-aspirating

The specially designed start-shaped closed impeller generates negative pressure in water and aspirates air from  above the water surface through an air pipe.

Non-clogging

Water is sucked from the large inflow port on top of the impeller casing and mixed with air. This structure prevents troubles that the inflow port is clogged up with sediments on bottom of a tank.

Long service life
The impeller is made of cast stainless steel. The top and bottom faces inside the impeller casing are lined with stainless steel plates. It improves abrasion resistance and controls a reduction in air flow performance.

Light weight and compact

The compact unit is light in weight too. You can easily sink and lift the unit and out of a chamber.

Ready to set up
To get the unit up and running, just connect the air intake pipe to the body and place the unit in the chamber.

Easy to maintain design

Oil can be changed and the motor may be inspected while the unit is in its upright position. In short, the product is configured for easy servicing.

Application:

  • BOD reduction in waste water
  • Aeration and agitation of waste water
  • Sewage and industrial waste treatment facilities
  • Aeration & mixing processes
  • SBR process

Technical Specifications

Air Flow Range

40~875 m3/hr

OTR (max)

Upto 85 (kg-O2)

Liquid Temp.

5`~40` C

Frequency

50/60 Hz

MOC

CI Pump casing, diffuser, impeller Motor casing SS304 Shaft SS420
